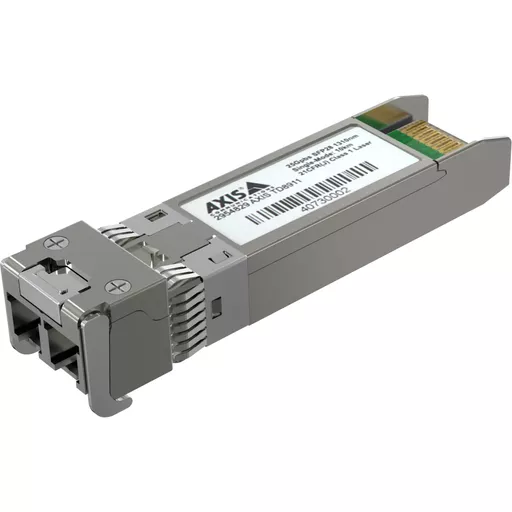

AXIS TD8911 SFP28 Module LC.LR.X
AXIS TD8911 SFP28 Module LC.LR.X a small form-factor pluggable 28 (SFP28) transceiver that supplies network devices, such as a switches or routers, with a fiber optic network connection. It has a temperature range between 0 °C to 70 °C (-32 °F to 158 °F).
Specifications
Complying with SFP28 Multisource Agreement (MSA), it is easy to install into compliant ports at any time without interrupting the online operation of the host equipment. Long wavelength (1,310 nm) DFB laser diodes enable data transmission up to 10 km on a single-mode 9/125 μm optical fiber. The module is tested and verified with Axis products such as AXIS D8308 Fiber Aggregation Switch.
Link-loss feature for network redundancy
The loss of signal (LOS) feature allows for the system to recognize a lost connection between a specific hardware (For example, AXIS Network Cameras) and the host. For optimized network redundancy, AXIS TD8911 signals the hardware in case of a lost connection or unusable connection for network traffic. This allows for the hardware to redirect the network traffic through a fallback connection, for example via RJ45.
